TYPE AC S1 single-use temperature data logger is used to monitor temperature data during transportation.

TYPE AC S1

Single-use TYPE A+C Temperature Data Logger with Error Prevention Design

Type AC S1 is engineered to avoid mistakes, thanks to the 2 buttons design and 3 lights indication.

Contact us

Existing Problems and Potential Causes

blank report and one button for all

Blank Report

Users are confused by the startup delay. Long-press the only button for several times, so the logger stop logging before trip ends.
no battery

Low Battery/Battery Died

It’s usually caused by low quality cheap battery and high power consumption program.
pdf file on pc

Read Report on PC Only

Only USB Type A is available. To read report, users have to go indoor and use the computer, which is not efficient.

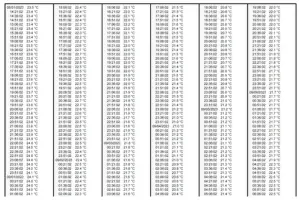

countless raw data

Lack of Statistics Data On Report. °C OR °F

Only simple calculated data is included in the report due to the limited memory of the microchip. Either °C or °F, only one unit option.

YESSS - Engineered for Error Prevention

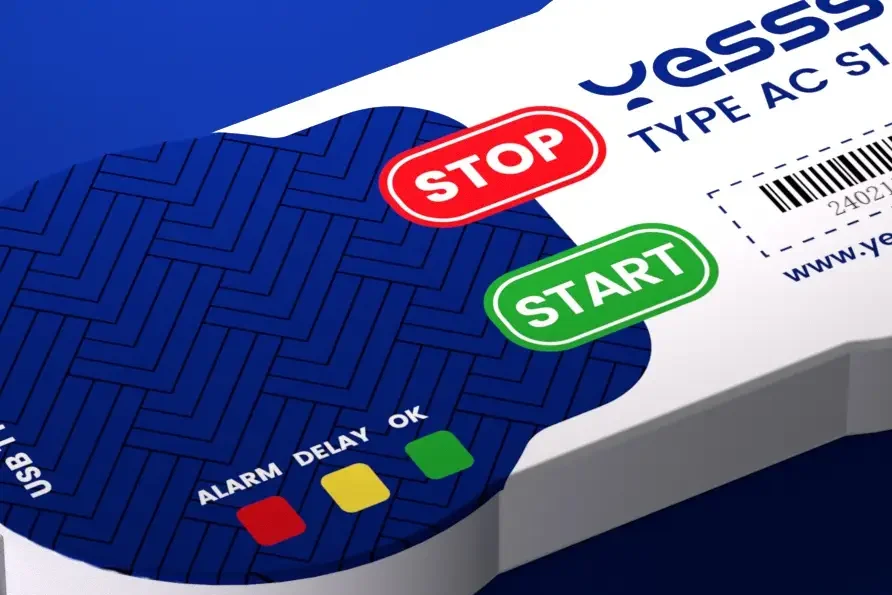

TYPE AC S1 use 2 buttons and 3 lights design

Even New Users Can Understand ​

2 large buttons to operate start and stop separately.

Type AC S1 adopt 3 lights, adding one start up delay yellow light for vivid indication.

panasonic battery

Every Selection Matters

Type AC series batteries are selected after undergoing numerous rigorous tests. Exclusive power reduction technology ensures stable power supply even in low-temperature conditions.
TYPE AC reports can be read on different devices with type C port anytime

Not Only Type A, but Type C​

The unique USB Type A+C dual-port design enables efficient report downloads across various devices, including phones and tablets.

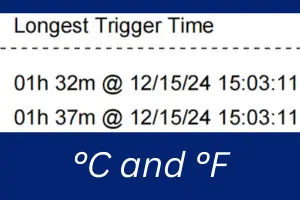

more data conclusion in TYPE AC including longest trigger time and C&F

°C AND °F at The Same Report

Specially add “The Longest Trigger Time” data summary.

No need to calculate manually anymore.

°C and °F are available at the same time.



Main Specifications

Operation

2 buttons
Start
Stop

Connection Interface

USB 2.0
Type A+C

3 Lights Indication

OK(G) Alarm(R) Startup Delay(Y)

Data Export

Encrypted PDF & CSV automatically

Temperature Range

–30 °C to 70 °C

Temperature Accuracy

±0.5°C (-10°C to 40°C) ，±0.8°C (others)

Run Time (Interval）

Up to 160 days (15 min.) = Standard parameter​

Alarm Configuration

2 alarms configurable, single or cumulative
